Distanzscheibe 15mm LK: 4x100mm 4x108mm NLB: 57,1mm - mit Felgenzentrierung
Spurverbreiterung 30 mm (2x15 mm) Satz
Lochkreis: 4 x 100 mm + 4 x 108 mm / NLB Ø: 57,1 mm
Radschrauben (Felgenabhängig) / Wheel bolts (depend on rims):
Teilegutachten / Certificates:
Lochkreis: 4 x 100 mm + 4 x 108 mm / NLB Ø: 57,1 mm
- MADE IN GERMANY
- Hochfestes Aluminium (AlCuMgPd)
- Geringste Fertigungstoleranzen
- Höchste Passgenauigkeit
- Bestechende Optik
- Verbesserte Fahrdynamik
- Mit TÜV Teilegutachten §19.3
- MADE IN GERMANY
- HD aluminum (AlZnMgCu)
- Lowest production tolerances
- Highest fitting accuracy
- Better car appearance
- Improved driving dynamics
- TÜV approval certificate §19.3

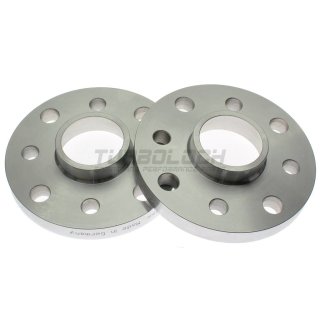

Das Bild zeigt die hier angebotenen Spurscheiben! Es handelt sich grundsätzlich um einen Satz/Paar (= 2 Stück) Spurscheiben für eine Achse. Die
Scheiben werden mit entsprechend längeren Radschrauben zwischen Radnabe und Felge verbaut. Die Schrauben sind nicht im Lieferumfang enthalten und müssen
gesondert bestellt werden. Die Schraubenlänge sollte um die Stärke/Dicke der Spurplatte länger sein als die serienmäßig verbauten Radschrauben.
The picture shows the offered spacers! This offer is for a set/pair (= 2 pieces) of wheel spacers for one axle. The spacers are mounted with longer
wheel bolts between the wheel hub and rim. The bolts are not included and need to be ordered separately. The length of the bolts should be selected in
accordance to the thickness of the spacer/disc.
Technische Daten / Technical Specs: | |
Lochkreis / Hole circle: | 4x100 mm / 4x108 mm |
Nabenlochbohrung Ø / Center hole Ø: | 57,1 mm |
Felgenzentrierung / Rim centering: | Ja / Yes |
Verbreiterung pro Achse / Axle widening: | 30 mm |
Scheibenstärke / Spacer thickness: | 15 mm |
Außendurchmesser / Outer diameter: | 138,5 mm |
Gewicht pro Scheibe / Weight per spacer: | 490 g |
Werkstoff / Material: | Aluminium AlCuMgPd / Aluminum AlZnMgCu |
Anzahl der Scheiben / Quantity of discs: | 2 |
Gutachten / Certificate: | §19.3 / §21, §19.2 ➟ Download |
Hersteller / Manufacturer: | SCC Fahrzeugtechnik GmbH - Germany |
Herstellernummer / Manufacturer number: | 12113 |
Lieferumfang / Scope of delivery: | |
Satz Spurverbreiterung / Wheel spacers: | Satz für eine Achse (2 Scheiben) / Set for one axle (2 discs) |
Einbauhinweise / Installation guide: | Deutsch / English |
Radschrauben / Wheel bolts: | Nein / No |
Radschrauben (Felgenabhängig) / Wheel bolts (depend on rims):
Die Schraubenlänge sollte um die Scheibendicke länger gewählt werden. Bei einer Spurplatte mit einer
Stärke/Dicke von 10 mm sollten also um ca. 10 mm längere Radschrauben gewählt werden. Die Schrauben müssen nach TÜV-Vorgaben mindestens 6,5 Gewindeumdrehungen
eingeschraubt werden! Passende Schrauben sind in unserem Shop erhältlich.
The new bolt length should be selected according to the thickness of the spacer/disc. Consequently,
if the spacer/disc has a thickness of 10 mm the new bolts should be 10 mm longer than the stock bolts. The bolts must be fastened with at least 6.5
rotations! Fitting wheel bolts are available in our shop.
Teilegutachten / Certificates:
Bitte prüfen Sie vor dem Kauf anhand der folgenden Liste, ob für Ihr Fahrzeug ein Teilegutachten nach §19.3 vorhanden ist. Die
Teilegutachten stellen wir Ihnen zum Download zur Verfügung. Es ist nicht ausreichend das Teilegutachten im Fahrzeug mitzuführen! Eine Eintragung in die Fahrzeugpapiere ist
grundsätzlich notwendig. Hierfür drucken Sie das Dokument bitte aus und legen es Ihrem Sachverständigen zur Eintragung vor. Sollten bereits Änderungen an der Achsgeometrie
(z.B. Tieferlegungsfedern, Gewindefahrwerke oder Zubehörfelgen) Ihres Fahrzeuges vorgenommen worden sein, sind die einzelen Teilegutachten nach §19.3 hinfällig. In diesen
Fällen ist eine Einzelabnahme nach §21 (§19.2) notwendig.
➯ Sollte Ihr Fahrzeug nicht aufgeführt sein, kontaktieren Sie uns bitte!
Sollte es für Ihr Fahrzeug kein Teilegutachen zur Eintragung nach §19.3 geben, ist eine Einzelabnahme nach §21 in Verbindung mit §19.2 notwendig. Dafür ist ein allgemeines Festigkeitsgutachten für alle angebotenen Spurverbreiterungen und Adaptersysteme im PDF-Format zum Download verfügbar.
➯ Sollte Ihr Fahrzeug nicht aufgeführt sein, kontaktieren Sie uns bitte!
Sollte es für Ihr Fahrzeug kein Teilegutachen zur Eintragung nach §19.3 geben, ist eine Einzelabnahme nach §21 in Verbindung mit §19.2 notwendig. Dafür ist ein allgemeines Festigkeitsgutachten für alle angebotenen Spurverbreiterungen und Adaptersysteme im PDF-Format zum Download verfügbar.
Please check in the list below wether a §19.3 certificate is available for your particular car. We offer you the certificates
for download. In Germany it is not sufficiant to have the certificate in your car! A legalisation and an corresponding entry in your cars documents is necessary. Therefore
please print the document and hand it over to an authorised expert for legalisation. The car specific certificates are invalidated if there are futher changes to the suspension
and wheels (e.g. lowering springs, adjustable suspension kits or rims). In these cases an individual legalisation according to §21 (§19.2) becomes indispensable.
➯ Feel free to contact us if your car is not listed!
If there is no specific certificate for you car, an individual legalisation will be necessary. Therefor a general certificate can be downloaded as a pdf-document
➯ Feel free to contact us if your car is not listed!
If there is no specific certificate for you car, an individual legalisation will be necessary. Therefor a general certificate can be downloaded as a pdf-document
Gutachten für folgende Fahrzeuge / TÜV approval certificate available for following cars: |
Typ: | Gutachten: |
Audi 80 / 90 inkl. Quattro B3 (Bj. 1986-1991) | 89, 89Q | §19.3 |
Audi 80 / 90 inkl. Quattro B4 (Bj. 1991-1996) | 89, 89Q, 8C | §19.3 |
BMW 3er inkl. Cabrio / Touring / ix (Bj. 1982-1994) | E30 (3/1, 3/R, 3/A) | §19.3 |
Opel Ascona (Bj. 1975-1981) | B | §19.3 |
Opel Kadett C (Bj. 1973-1979) | C / Coupe / L / City / Caravan | §19.3 |
Opel Manta B (Bj. 1975-1988) | B/B - CC | §19.3 |
Seat Arosa (Bj. 1997-2004) | 6H / 6HS | §19.3 |
Seat Cordoba incl.Vario / Cupra (Bj. 1993-2002) | 6K *C | §19.3 |
Seat Ibiza (Bj. 1993-2002) | 6K | §19.3 |
Seat Mii (Bj. 2011 >) | AA | §19.3 |
Seat Toledo (Bj. 1991-1999) | 1L (4-Loch) | §19.3 |
Skoda Favorit (Bj. 1992-1996) | 781 [LK: 4x100] | §19.3 |
Skoda Forman (Bj. 1987-1994) | 785 [LK: 4x100] | §19.3 |
Skoda Pickup (Bj. 1992-1997) | 787 [LK: 4x100] | §19.3 |
VW Corrado (Bj. 1988-1995) | 35i [LK: 4x100] | §19.3 |
VW Golf I inkl. Cabrio (Bj. 1974-1983) | 17, 17CK, 155 | §19.3 |
VW Golf II (Bj. 1983-1992) | 19E | §19.3 |
VW Golf III inkl. Variant (Bj. 1991-1997) | 1HX0, 1H | §19.3 |
VW Golf III Cabrio (Bj. 1991-1997) | 1EXO, 1E, 1HX0F | §19.3 |
VW Jetta I (Bj. 1979-1984) | 16 | Auf Anfrage |
VW Jetta II (Bj. 1984-1992) | 19E | §19.3 |
VW Lupo (Bj. 1998-2005) | 6X, *E, *ES | §19.3 |
VW Up! (Bj. 2011 >) | AA | §19.3 |
VW Passat (Bj.1988-1997) | 35i [4-Loch] | §19.3 |
VW Polo II / Derby II / Derby III (Bj. 1981-1994) | 86C | §19.3 |
VW Polo III (Bj. 1994-2001) | 6N, NF, 6KV, 6N2 | §19.3 |
VW Scirocco I & II (Bj. 1974-1992) | 53, 53B | §19.3 |
VW Vento (Bj. 1991-1997) | 1HX0, 1H | §19.3 |
Passend für folgende weitere Fahrzeuge / Fits for following additional cars: |
Typ: |
Audi 50 (Bj. 1974-1978) | 86 |
Audi 80 (Bj. 1972-1978) | 82 |
Audi 80/90 B2 (Bj. 1978-1986) | 81 [LK: 4x100] |
Audi 80/90 Quattro & Coupe B2 (Bj. 1978-1986) | 81, 85 [LK: 4x108] |
Audi 100/200 Quattro & Avant C2 (Bj. 1976-1982) | 43 |
Audi 100/200 Quattro & Avant C3 (Bj. 1982-1991) | 44 |
BMW 1502-2002Tii (Bj. 1966-1977) | E10 (02) |
BMW 2002 Turbo (Bj. 1968-1975) | E20 (02) |
BMW 3er (Bj. 1975-1983) | E21 (3) |
BMW Z1 (Bj. 1989-1991) | Z/B |
Opel Ascona (Bj. 1970-1975) | A |
Opel Ascona (Bj. 1970-1975) | A |
Opel GT (Bj. 1968-1973) | 1100/1900 |
Opel Kadett B (Bj. 1965-1973) | B |
Opel Manta A (Bj. 1970-1975) | A |
Porsche 924 (Bj. 1976-1988) | 924 |
Seat Inca (Bj. 1995-2003) | 9KS, 9KSF |
Skoda Pickup (Bj. 1995-2000) | 797 |
VW Caddy, Caddy Life, Caddy Alltrack (Bj. 1983-1992) | 14D |
VW Caddy, Caddy Life, Caddy Alltrack (Bj. 1995-2003) | 9KV, 9KVF, 9U |
VW Golf II Syncro (Bj. 1983-1992) | 19E/299 |
VW Golf III inkl. Variant (Bj. 1991-1997) | 1HX1 |
VW Polo I / Derby I (Bj. 1975-1981) | 86 |
VW Passat, Santana (Bj. 1980-1988) | 32B |
Artikelgewicht: | 1,10 Kg |
Inhalt: | 2,00 Stück |
