Dichtungs & Montagekit (Elring 704.020) Turbolader - Garrett GT15 - GT17 VAG 1.9 TDI (90-150 PS)

Artikelnummer: ATL_704.020

Kategorie: Motorenteile


36,99 €

inkl. 19% USt., zzgl. Versand (DHL Paket)

Sofort verfügbar

Lieferzeit: 2 - 3 Werktage



Beschreibung

Dichtungskit für Garrett GT15 GT17
Audi Seat Skoda VW Ford
Motorkennbuchstaben: AHF, AJM, ALH, ASV, ASZ, ATD, AUY, AXR, BEW, BLT, BPX, BSW, BTB, BUK (1.9 TDI, 90-150 PS)


  • Für OEM-Nummern / For OEM-numbers:
  • 038 253 010 A
  • 038 253 010 AX
  • 038 253 010 G
  • 038 253 010 GX
  • 038 253 010 K
  • 038 253 010 KX
  • 038 253 010 S
  • 038 253 010 SX
  • 038 253 014 A
  • 038 253 014 AX
  • 038 253 014 B
  • 038 253 014 BX
  • 038 253 014 E
  • 038 253 014 EX
  • 038 253 014 R
  • 038 253 014 RX
  • 038 253 016 B
  • 038 253 016 BX
  • 038 253 016 H
  • 038 253 016 HX
  • 038 253 016 J
  • 038 253 016 JX
  • 038 253 016 L
  • 038 253 016 LX
  • 038 253 016 M
  • 038 253 016 MX
  • 038 253 016 N
  • 038 253 016 NX
  • 038 253 019 A
  • 038 253 019 AX
  • 038 253 019 C
  • 038 253 019 CX
  • 038 253 019 D
  • 038 253 019 DX
  • 038 253 019 H
  • 038 253 019 HX
  • 038 253 019 L
  • 038 253 019 LX
  • 038 253 019 N
  • 038 253 019 NX
  • 038 253 019 P
  • 038 253 019 PX
  • 038 253 019 Q
  • 038 253 019 QX
  • 038 253 019 S
  • 038 253 019 SX
  • 038 253 056 A
  • 038 253 056 Ax
  • 038 253 056 C
  • 038 253 056 CX
  • 03G 253 010 B
  • 03G 253 010 BX
  • 03G 253 014 L
  • 03G 253 014 LX
  • 03G 253 014 R
  • 03G 253 014 RX


Nach einem Turboladerdefekt sollte der neue Turbolader immer mit Neuteilen wieder verbaut werden, da die alten Dichtungen und Schrauben keinen ordnungsgemäßen Sitz und Dichtheit mehr gewährleisten können. Dieses Dichtungskit umfasst alle Montageteile und passt zu den Turboladern der aufgeführten Motoren. Laut Herstellerangaben ist ein Motorölwechsel und das Austauschen der Ölvorlaufleitung notwendig. Beides können wir Ihnen auf Anfrage ebenfalls anbieten.


After a turbocharger failure should always be the new turbocharger fitted with new parts, since the old gaskets and screws guarantee no proper seating and sealing. This gasket kit includes all required part and fits all turbochargers of the listed engines. According to the manufacturer, a motor oil change and replacing the oil supply line is required. Both are available on request.

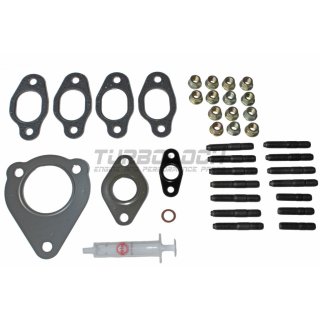

Lieferumfang / Scope of delivery:
  • 1x Dichtung Turbolader - Abgaskrümmer
  • 1x Dichtung Turbolader - Hosenrohr
  • 1x Dichtung Öl-Rücklauf
  • 3x Stehbolzen Abgaskrümmer - Turbolader
  • 3x Stehbolzen Turbolader - Hosenrohr
  • 5x M10 Kupfermutter
  • 1x M8 Kupfermutter
  • 1x Kupfer-Dichtring Ölvorlauf
  • 1x Kupfer-Dichtring Kühlwasser-Vorlauf
  • 1x Kupfer-Dichtring Kühlwasser-Rücklauf
  • 1x Ölspritze zur Erstbefüllung
  • 1x Gasket Turbocharger - Exhaust Manifold
  • 1x Gasket Turbocharger - Downpipe
  • 1x Gasket Oil return line
  • 3x Stuts Exhaust Manifold - Turbocharger
  • 3x Stuts Exhaust Turbocharger - Downpipe
  • 5x M10 copper nuts
  • 1x M8 copper nut
  • 1x Copper ring oil feed line
  • 1x Copper ring coolant feed line
  • 1x Copper ring coolant return line
  • 1x Lubrication for first startup






Passend für folgende Autos: Fitting for following cars:
Audi:
A3 1.9 TDI (8L1) - 09.1996-07.2001 - 66kW/90PS (MKB: ALH)
A3 1.9 TDI (8L1) - 10.2000-05.2003 - 74kW/100PS
A3 1.9 TDI (8L1) - 08.1997-07.2001 - 81kW/110PS (MKB: AHF)
A3 1.9 TDI (8L1) - 08.2000-05.2003 - 96kW/130PS
A3 1.9 TDI Quattro (8L1) - 08.2000-05.2003 - 96kW/130PS
Ford:
Galaxy 1.9 TDI (WGR) - 04.2000-05.2006 - 85kW/115PS
Galaxy 1.9 TDI (WGR) - 02.2003-05.2006 - 96kW/130PS
Galaxy 1.9 TDI (WGR) - 05.2005-05.2006 - 110kW/150PS
Seat:
Alhambra 1.9 TDI (7V8, 7V9) - Bj. 06.2000-03.2010 - 85kW/115PS (MKB: AUY)
Alhambra 1.9 TDI (7V8, 7V9) - Bj. 11.2002-11.2008 - 96kW/131PS
Alhambra 1.9 TDI (7V8, 7V9) - Bj. 05.2005-05.2007 - 110kW/150PS
Alhambra 1.9 TDI 4motion (7V8, 7V9) - Bj. 06.2000-03.2010 - 85kW/115PS (MKB: AUY)
Cordoba 1.9 TDI (6K1, 6K2) - 08.1996-06.1999 - 66kW/90PS (MKB: ALH)
Cordoba 1.9 TDI (6K2) - 06.1999-10.2002 - 66kW/90PS (MKB: ALH)
Cordoba Vario 1.9 TDI (6K5) - 06.1999-12.2002 - 66kW/90PS (MKB: ALH)
Cordoba 1.9 TDI (6L2) - 09.2002-11.2009 - 74kW/100PS
Cordoba 1.9 TDI (6L2) - 10.2002-11.2009 - 96kW/131PS
Ibiza (III) 1.9 TDI (6K1) - 08.1999-02.2002 - 66kW/90PS (MKB: ALH)
Ibiza (VI) 1.9 TDI (6L1) - 02.2002-11.2009 - 74kW/101PS
Ibiza (VI) 1.9 TDI (6L1) - 02.2002-11.2009 - 96kW/130PS
Ibiza (VI) 1.9 TDI Cupra R (6L1) - 03.2004-02.2008 - 118kW/160PS
Inca 1.9 TDI (6K9) - 09.1996-06.2003 - 66kW/90PS
Leon 1.9 TDI (1M1) - 11.1999-06.2006 - 66kW/90PS (MKB: ALH)
Leon 1.9 TDI (1M1) - 11.1999-06.2006 - 81kW/110PS
Leon 1.9 TDI (1M1) - 05.2003-06.2006 - 96kW/130PS
Leon 1.9 TDI (1M1) - 09.2000-06.2006 - 110kW/150PS
Toledo 1.9 TDI (1M2) - 03.1999-07.2004 - 66kW/90PS (MKB: ALH)
Toledo 1.9 TDI (1M2) - 10.1998-07.2004 - 81kW/110PS
Toledo 1.9 TDI (1M2) - 05.2003-05.2006 - 96kW/130PS
Toledo 1.9 TDI (1M2) - 10.2000-05.2006 - 110kW/150PS
Skoda:
Fabia 1.9 TDI (6Y2) - 01.2000-03.2008 - 74kW/100PS
Fabia 1.9 TDI RS (6Y2) - 06.2003-03.2008 - 96kW/130PS
Fabia Combi 1.9 TDI (6Y5) - 01.2000-12.2007 - 74kW/100PS
Fabia Stufenheck 1.9 TDI (6Y3) - 01.2000-12.2007- 74kW/100PS
Fabia 1.9 TDI - 04.2007-03.2010 - 77kW/105PS (MKB: BSW)
Fabia 1.9 TDI - 10.2007-03.2010 - 77kW/105PS (MKB: BSW)
Octavia 1.9 TDI (1U2) - 09.1996-03.2010 - 66kW/90PS (MKB: ALH)
Octavia 1.9 TDI (1U2) - 10.2005-12.2010 - 74kW/100PS
Octavia 1.9 TDI (1U2) - 08.1997-01.2006 - 81kW/110PS
Octavia 1.9 TDI (1U2) - 09.2002-09.2004 - 96kW/130PS
Octavia Combi 1.9 TDI (1U5) - 07.1998-03.2010 - 66kW/90PS (MKB: ALH)
Octavia Combi 1.9 TDI (1U5) - 08.2000-12.2010 - 74kW/100PS
Octavia Combi 1.9 TDI (1U5) - 07.1998-01.2006 - 81kW/110PS
Octavia Combi 1.9 TDI (1U5) - 09.2002-09.2004 - 96kW/130PS
Octavia Combi 1.9 TDI 4x4 (1U5) - 11.1999-02.2006 - 66kW/90PS (MKB: ALH)
Octavia Combi 1.9 TDI 4x4 (1U5) - 09.2000-01.2006 - 74kW/100PS
Roomster 1.9 TDI (5J) - 03.2006-05.2006 - 74kW/100PS
Roomster 1.9 TDI (5J) - 09.2006-03.2010 - 77kW/105PS (MKB: BSW)
Volkswagen:
Bora 1.9 TDI (1J2) - 10.1998-05.2005 - 66kW/90PS (MKB: ALH)
Bora 1.9 TDI (1J2) - 09.2000-05.2005 - 74kW/101PS
Bora 1.9 TDI (1J2) - 10.1998-06.2001 - 81kW/110PS
Bora 1.9 TDI (1J2) - 12.1998-01.2002 - 85kW/115PS
Bora 1.9 TDI (1J2) - 11.2000-05.2005 - 96kW/130PS
Bora 1.9 TDI (1J2) - 05.2000-05.2005 - 110kW/150PS
Bora 1.9 TDI 4motion (1J2) - 11.1998-04.2002 - 66kW/90PS (MKB: ALH)
Bora 1.9 TDI 4motion (1J2) - 09.2000-05.2005 - 74kW/101PS
Bora 1.9 TDI 4motion (1J2) - 02.1999-06.2001 - 85kW/115PS
Bora 1.9 TDI 4motion (1J2) - 11.2000-05.2005 - 96kW/130PS
Bora 1.9 TDI 4motion (1J2) - 05.2000-05.2005 - 110kW/150PS
Bora Variant 1.9 TDI (1J6) - 07.2004-05.2005 - 66kW/90PS (MKB: ALH)
Bora Variant 1.9 TDI (1J6) - 09.2000-05.2005 - 74kW/101PS
Bora Variant 1.9 TDI (1J6) - 05.1999-06.2001 - 81kW/110PS
Bora Variant 1.9 TDI (1J6) - 05.1999-06.2001 - 85kW/115PS
Bora Variant 1.9 TDI (1J6) - 11.2000-05.2005 - 96kW/130PS
Bora Variant 1.9 TDI (1J6) - 05.2001-05.2005 - 110kW/150PS
Bora Variant 1.9 TDI 4motion (1J6) - 09.2000-05.2005 - 74kW/101PS
Bora Variant 1.9 TDI 4motion (1J6) - 02.1999-06.2001 - 85kW/115PS
Bora Variant 1.9 TDI 4motion (1J6) - 11.2000-05.2005 - 96kW/130PS
Bora Variant 1.9 TDI 4motion (1J6) - 05.2000-05.2005 - 110kW/150PS
Caddy (II) Kasten 1.9 TDI (9K9A) - 09.1996-01.2004 - 66kW/90PS (MKB: ALH)
Caddy (II) Kombi 1.9 TDI (9K9B) - 10.1996-01.2004 - 66kW/90PS (MKB: ALH)
Golf IV 1.9 TDI (1J1) - 10.1997-05.2004 - 66kW/90PS (MKB: ALH)
Golf IV 1.9 TDI (1J1) - 09.2000-06.2005 - 74kW/101PS
Golf IV 1.9 TDI (1J1) - 08.1997-05.2004 - 81kW/110PS
Golf IV 1.9 TDI (1J1) - 12.1998-01.2002 - 85kW/115PS
Golf IV 1.9 TDI (1J1) - 11.2000-06.2005 - 96kW/130PS
Golf IV 1.9 TDI (1J1) - 05.2000-06.2005 - 110kW/150PS
Golf IV 1.9 TDI 4motion (1J1) - 09.2000-06.2005 - 74kW/101PS
Golf IV 1.9 TDI 4motion (1J1) - 09.1999-06.2001 - 85kW/115PS
Golf IV 1.9 TDI 4motion (1J1) - 11.2000-06.2005 - 96kW/130PS
Golf IV 1.9 TDI 4motion (1J1) - 02.2000-06.2005 - 110kW/150PS
Golf IV Variant 1.9 TDI (1J5) - 10.1999-05.2006 - 66kW/90PS (MKB: ALH)
Golf IV Variant 1.9 TDI (1J5) - 09.2000-06.2006 - 74kW/101PS
Golf IV Variant 1.9 TDI (1J5) - 05.1999-06.2001 - 81kW/110PS
Golf IV Variant 1.9 TDI (1J5) - 08.1999-06.2001 - 85kW/115PS
Golf IV Variant 1.9 TDI (1J5) - 11.2000-06.2006 - 96kW/130PS
Golf IV Variant 1.9 TDI 4motion (1J5) - 05.1995-04.2002 - 66kW/90PS (MKB: ALH)
Golf IV Variant 1.9 TDI 4motion (1J5) - 09.2000-06.2006 - 74kW/101PS
Golf IV Variant 1.9 TDI 4motion (1J5) - 05.1999-06.2001 - 81kW/110PS
Golf IV Variant 1.9 TDI 4motion (1J5) - 08.1999-06.2001 - 85kW/115PS
Golf IV Variant 1.9 TDI 4motion (1J5) - 11.2000-06.2006 - 96kW/130PS
Golf IV Variant 1.9 TDI 4motion (1J5) - 05.2002-06.2006 - 110kW/150PS
New Beetle 1.9 TDI (9C1, 1C1) - 01.1998-06.2004 - 66kW/90PS (MKB: ALH)
New Beetle 1.9 TDI (9C1, 1C1) - 02.2001-09.2010 - 74kW/101PS
New Beetle 1.9 TDI (9C1, 1C1) - 07.2005-09.2010 - 77kW/105PS
New Beetle Cabrio 1.9 TDI (1Y7) - 06.2003-09.2010 - 74kW/101PS
New Beetle Cabrio 1.9 TDI (1Y7) - 07.2005-09.2010 - 77kW/105PS
Polo Classic 1.9 TDI (6N, 6KV2) - 09.1996-09.2001 - 66kW/90PS (MKB: ALH)
Polo Variant 1.9 TDI (6N, 6KV5) - 09.1996-09.2001 - 66kW/90PS (MKB: ALH)
Polo 1.9 TDI (9N_) - 10.2001-11.2009 - 74kW/101PS (MKB: ATD)
Polo 1.9 TDI (9N_) - 11.2003-11.2009 - 96kW/130PS
Sharan 1.9 TDI (7M8, 7M9, 7M6) - 04.2000-03.2010 - 85kW/110PS (MKB: AUY)
Sharan 1.9 TDI (7M8, 7M9, 7M6) - 11.2002-03.2010 - 96kW/130PS
Sharan 1.9 TDI (7M8, 7M9, 7M6) - 06.2005-03.2010 - 110kW/150PS
Sharan 1.9 TDI 4motion (7M8, 7M9, 7M6) - 04.2000-03.2010 - 85kW/110PS (MKB: AUY)
